KALESON HC-100L series 380V high power vacuum cleaner

KALESON HC-100L series 380V high power vacuum cleaner

KALESON HC-100L is a 380V high-power industrial vacuum cleaner with three power options: 4KW, 5.5KW, and 7.5KW. It uses an air ring brushless high-pressure fan, which can work for a long time without stopping. It is mainly used in places with high dust such as factory workshops, assembly lines, and warehouses. A large amount of dust is not easy to block, and it can also clean heavy objects such as iron filings, stones, steel sand, and glass fragments.

free quote

Product intrduction

KALESON HC-100L is a 380V high-power industrial vacuum cleaner with three power options: 4KW, 5.5KW, and 7.5KW. It uses an air ring brushless high-pressure fan, which can work for a long time without stopping. It is mainly used in places with high dust such as factory workshops, assembly lines, and warehouses. A large amount of dust is not easy to block, and it can also clean heavy objects such as iron filings, stones, steel sand, and glass fragments.

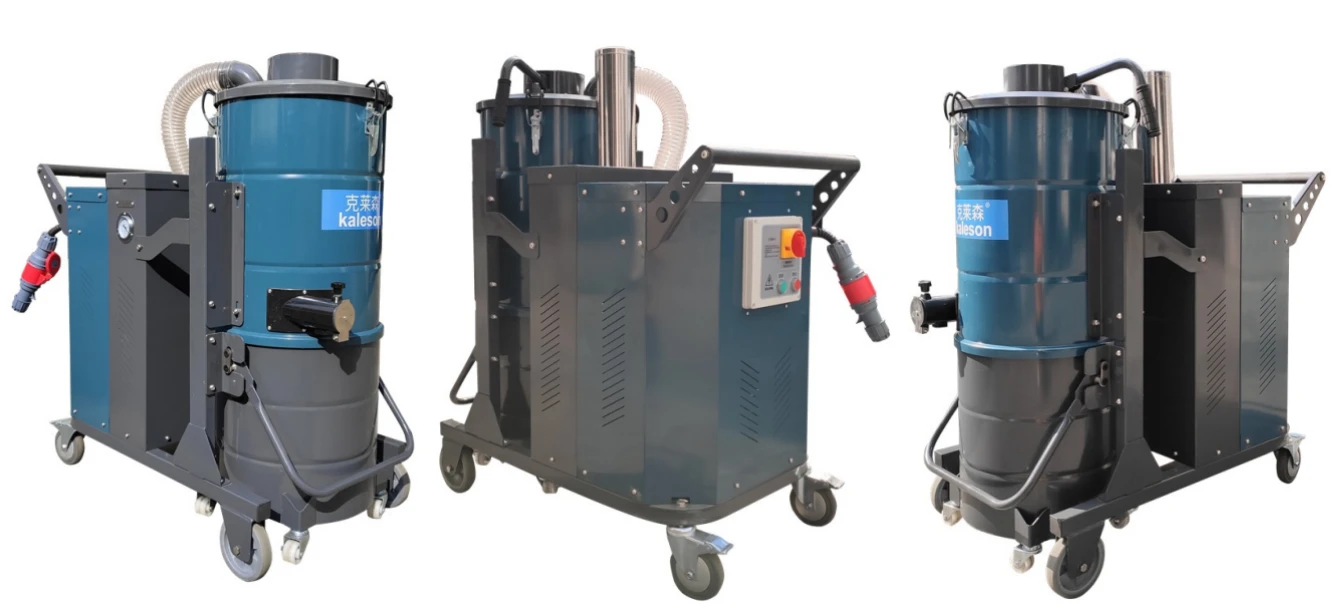

Product image

Product parameter

Model

HC4-100L

HC5-100L

HC7-100L

Voltage

380/50V/Hz

380/50V/Hz

380/50V/Hz

Power

4000W

5500W

7500W

Vacuum

28Kpa

32Kpa

34Kpa

Airflow

410M³/h

530M³/h

540M³/h

Cleaning method

Manual blowback

Manual blowback

Manual blowback

Filter area

52800C㎡

52800C㎡

52800C㎡

Noise

72DB

72DB

72DB

Caliber

50MM

50MM

50MM

Dustbin

100L

100L

100L

Weight

110KG

145KG

158KG

Dimensions

1150*600*1250mm

1150*600*1250mm

1150*600*1250mm

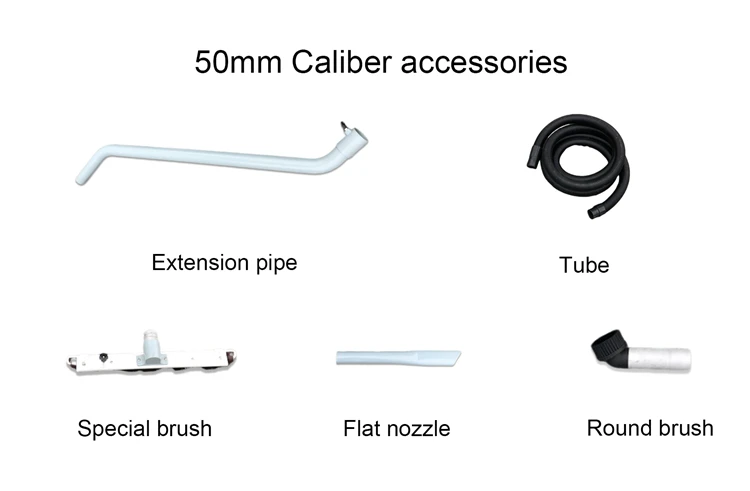

product accessories

50mm-1

Product features

1. Three phase centrifugal motor can operate continuously for a long time without stopping

2. The filter cleaning method is designed based on the principle of instantaneous expansion of air pressure

Manual reverse blowing for dust removal is simple, easy to understand, convenient, and fast.

3. Adopting high-efficiency filter element filter

4. Equipped with a pressure relief device, it can automatically release pressure in high negative pressure situations

5. Adopting upper and lower separation buckets for easy loading and unloading

6. Equipped with vacuum pressure gauge and silencing device

7. Overload, overcurrent, phase loss, and leakage protection are equipped with phase switching switches,

Electricity usage is safer and faster
