Product intrduction
HF-120L series is an industrial vacuum cleaner designed for use with fibers, cloth fibers, cotton fibers, paper scraps, and packaging debris. It features a built-in filter bag for easy dumping of fiber materials and a compact, flexible, and lightweight body.

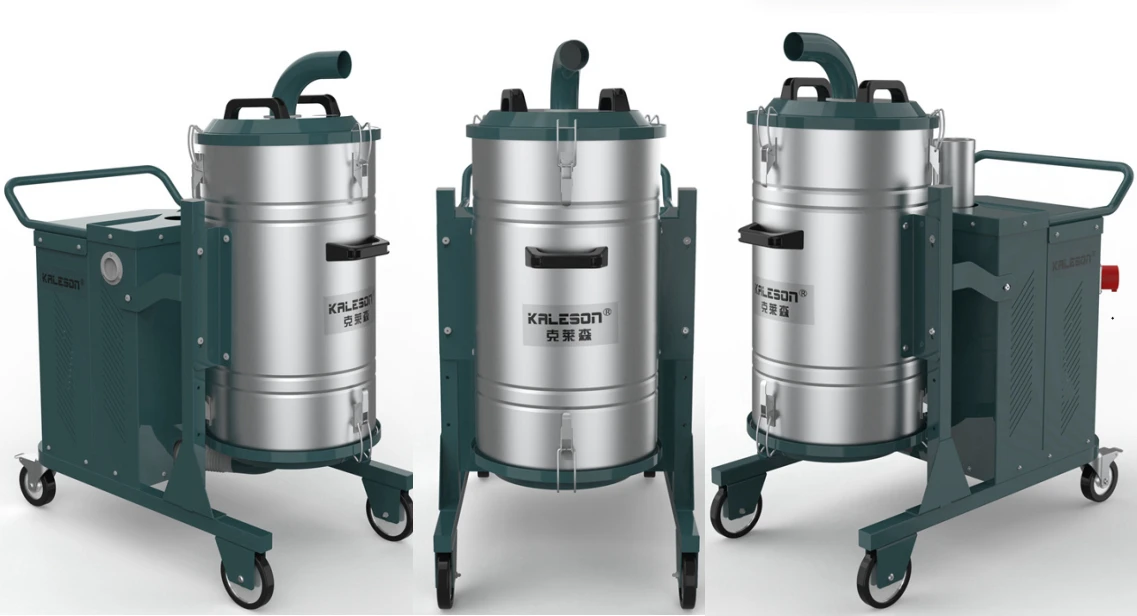

Product image
Product parameter
Model | HF2-120L | HF3-120L | HF4-120L | HF5-120L | HF7-120L |
Voltage | 220V/380V/50Hz | 220V/380V/50Hz | 380V/50Hz | 380V/50Hz | 380V/50Hz |
Power | 2200W | 3000W | 4000W | 5500W | 7500W |
Vacuum | 22Kpa | 26Kpa | 28Kpa | 32Kpa | 34Kpa |
Air flow | 320M³/h | 380M³/h | 410M³/h | 530M³/h | 540M³/h |
Filter area | 35000C㎡ | 35000C㎡ | 35000C㎡ | 35000C㎡ | 35000C㎡ |
Caliber | 50mm | 50mm | 50mm | 50mm | 50mm |
Dustbin | 120L | 120L | 120L | 120L | 120L |
Noise | 64Db | 69Db | 69Db | 72Db | 72Db |
Weight | 88KG | 95KG | 110KG | 145KG | 150KG |
Dimension | 1150*600*1300mm | ||||
product accessories
Product features
1. Lower the intake air, there will be no blockage of the filter bag
2. The filter bag is convenient for dumping fiber materials
3. Adopting high-efficiency filter element and secondary filter
4. Equipped with a pressure relief device, it can automatically release pressure in high negative pressure situations
5. Equipped with vacuum pressure gauge and silencing device
6. Equipped with leakage, phase loss, and overload protection devices
