Product intrduction
KALESON HO-200L is a solid-liquid separation three-phase industrial oil suction machine that effectively separates iron filings and impurity particles from mechanical equipment hydraulic oil, lubricating oil, cutting fluid, sewage, etc. and collects them simultaneously.

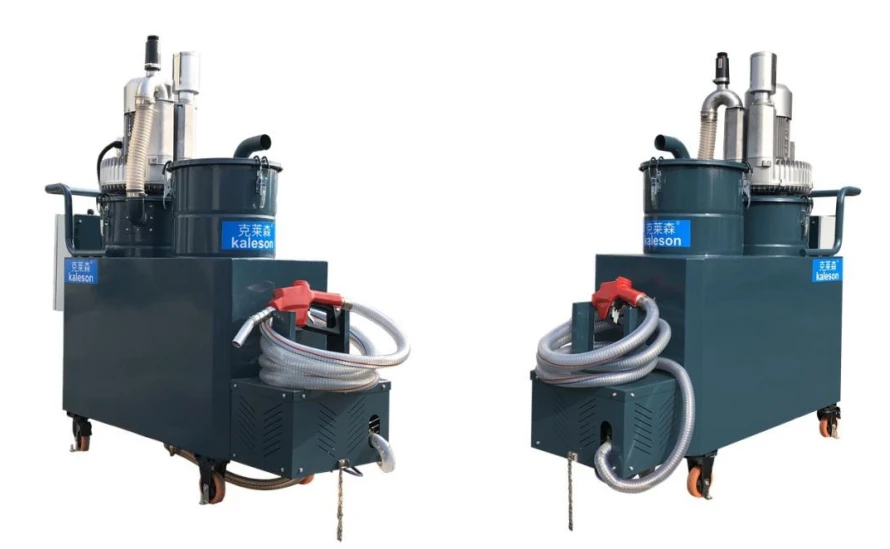

Product image
Product parameter
Model | HO4-200L | HO5-200L | HO7-200L |
Voltage | 380/50V/Hz | 380/50V/Hz | 380/50V/Hz |
Power | 4.0 Kw | 5.5 Kw | 7.5 Kw |
Air flow | 410M³/h | 530M³/h | 540M³/h |
Vacuum | 28Kpa | 32Kpa | 34Kpa |
Oil pump power | 0.75KW | 0.75KW | 0.75KW |
Caliber | 50MM | 50MM | 50MM |
Oil pump pressure | 30MBAR | 30MBAR | 30MBAR |
Oil pump range | 50M | 50M | 50M |
Filtering accuracy | 20-200um | 20-200um | 20-200um |
Oil volume | 200L | 200L | 200L |
Noise | 69Db | 69Db | 69Db |
Oil discharger caliber | 25MM | 25MM | 25MM |
Oil pump flow | 75L/M | 75L/M | 75L/M |
Solid collection | 55L | 55L | 55L |
Weight | 170KG | 185KG | 195KG |
Dimension | 1500x500x1300MM | 1500x500x1300MM | 1500x500x1300MM |
Product features
1. Automatic shutdown of machine when oil is full
2. Multiple layers of various precision filters can be optionally selected
3. Equipped with liquid level display
4. Equipped with standard oil discharge gun
5. Equipped with pressure reducing reflux device
6. Overload, overcurrent, phase loss, and leakage protection
