Product intrduction
KALESON HY-120L is a fully automatic pulse back blowing three-phase industrial vacuum cleaner, equipped with a compressed air machine and using timed back blowing to clean the filter screen technology. The back blowing time can be CNC adjusted, eliminating the need for manual cleaning of the filter screen and improving work efficiency. Truly achieving the absorption of a large amount of dust can also work continuously for a long time without stopping the machine. Suitable for large industrial dust collection sites with high dust volume.

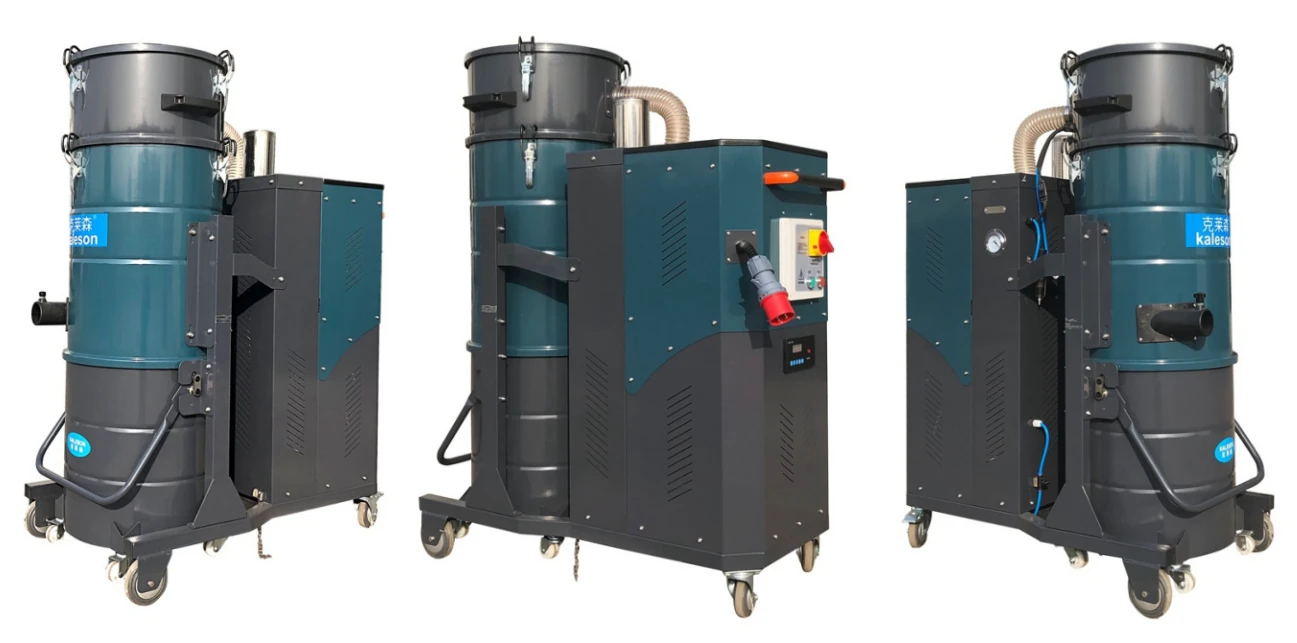

Product image
Product parameter
Model | HY4-120L | HY5-120L | HY7-120L |
Voltage | 380/50V/Hz | 380/50V/Hz | 380/50V/Hz |
Power | 4000W | 5500W | 7500W |
Vacuum | 28Kpa | 32Kpa | 34Kpa |
Airflow | 410M³/h | 530M³/h | 540M³/h |
Cleaning method | Pulse blowback | Pulse blowback | Pulse blowback |
Filter area | 81000C㎡ | 81000C㎡ | 81000C㎡ |
Caliber | 50MM | 50MM | 50MM |
Dustbin | 120L | 120L | 120L |
Weight | 150KG | 190KG | 200KG |
Dimensions | 1100*620*1400MM | 1100*620*1400MM | 1100*620*1400MM |
product accessories
Product features
1. Equipped with an air compressor, it can work continuously without stopping the machine
2. Numerical control adjustment of pulse interval time (automatic cycle)
3. The filter material adopts Dongli high-efficiency filter element filter
4. Equipped with a pressure relief device, it can automatically release pressure in high negative pressure situations
5. Adopting upper and lower separation buckets for easy loading and unloading
6. Multiple accessories of different sizes and diameters are available for selection
7. Equipped with vacuum pressure gauge and silencing device
8. Overload, overcurrent, phase loss, and leakage protection
9、Equipped with a phase switch, electricity usage is safer and faster
