Product intrduction

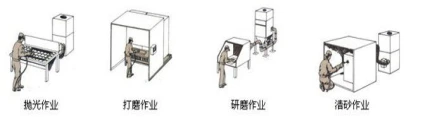

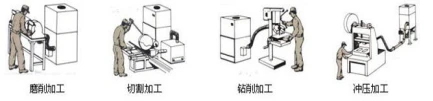

KALESON QD-100L series is a movable large-scale industrial dust collector, characterized by a large diameter, low negative pressure, and large air volume. It is mainly used to collect floating dust and is suitable for dust collection and recovery in ceramics, cement building materials, chemical products, mechanical processing, lathes, grinders, laser cutting machines, carving machines, and polishing and grinding machines. It has been widely used in dust collection and recovery.
Product image
Product parameter
Model | QD3-100L | QD4-100L | QD5-100L | QD7-100L |
Volts | 380/50V/Hz | 380/50V/Hz | 380/50V/Hz | 380/50V/Hz |
Power | 3.0 Kw | 4.0 Kw | 5.5Kw | 7.5Kw |
Vacuum | 1.7 KPa | 1.8KPa | 2.2 KPa | 2.6KPa |
Airflow | 5200M³/h | 6800M³/h | 7400M³/h | 10000M³/h |
Filter area | 11㎡ | 11㎡ | 18㎡ | 18㎡ |
Noise | 79Db(a) | 82Db(a) | 82Db(a) | 82Db(a) |
Caliber | 100-200mm | 100-200mm | 100-200mm | 200-300mm |
Dustbin | 100L | 100L | 100L | 100L |
Weight | 240kg | 260kg | 310kg | 340kg |
Dimensions | 850×800×1850mm | 850×900×2000mm | ||
Product features
1. The fan adopts a centrifugal ventilation structure, with high air volume and suction power
2. Three phase motors can work continuously
3. External gas source timed pulse blowback automatic dust cleaning
4. The use of a filter cartridge has good filtration effect, does not stick to dust, and has a long service life
5. Equipped with a wide and sealed access door for easy replacement and maintenance of filter bags
6. The dust collection bucket adopts a suction bucket structure, which is convenient and fast for ash dumping
