Product intrduction
KALESON QE-200L series three-phase industrial oil suction machine is a solid-liquid separation type equipment, equipped with various oil suction and pollution suction accessories to cope with various complex and diverse working conditions. It is designed for equipment maintenance, gearbox cleaning, mechanical processing cooling fluid cutting fluid recovery and cleaning. The equipment is equipped with an automatic oil discharge device and a pressure reducing reflux device, which separates various substances such as iron filings, oil stains, dust, and sludge.

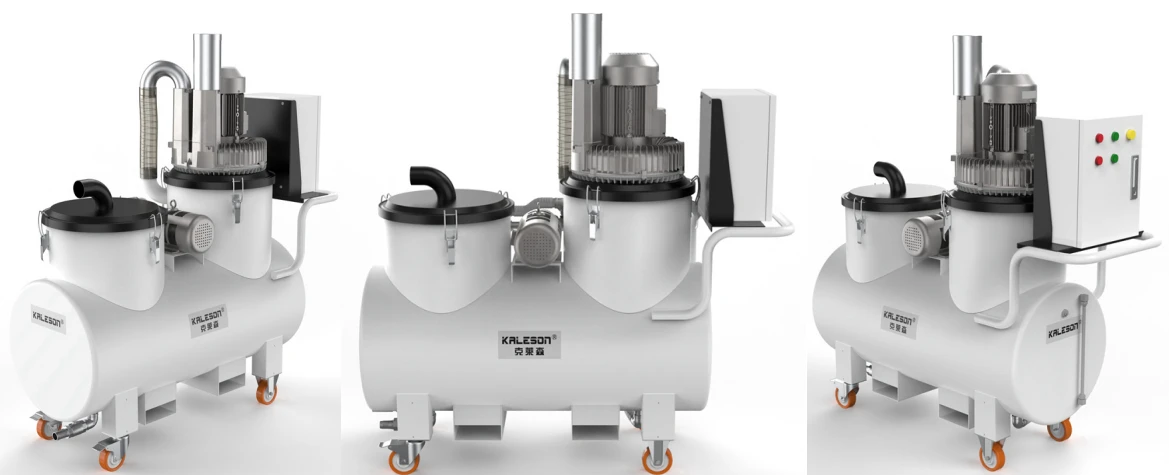

Product image
Product parameter
Model | QE4-200L | QE5-200L | QE7-200L |
Volts | 380/50V/Hz | 380/50 | 380/50 |
Power | 4.0 Kw | 5.5Kw | 7.5Kw |
Vacuum | 28Kpa | 32Kpa | 34Kpa |
Airflow | 410KM³/h | 530M³/h | 540M³/h |
Oil volume | 200L | 200L | 200L |
Oil pump power | 0.75Kw | 0.75Kw | 0.75Kw |
Noise | 69Db(a) | 72Db(a) | 72Db(a) |
Caliber | 40-63MM | 40-80MM | 40-80MM |
Oil discharger caliber | 25MM | 25MM | 25MM |
Oil pump pressure | 30mbar | 30mbar | 30mbar |
Oil pump flow | 75L/M | 75L/M | 75L/M |
Oil discharge pressure reducing reflux device | Include | Include | Include |
Oil pump range | 50M | 50M | 50M |
Solid collection | 55L | 55L | 55L |
Filtering accuracy | 20-200um(微米） | 20-200um(微米） | 20-200um(微米） |
Weight | 170KG | 185KG | 190KG |
Dimension | 1500*500*1300mm | ||
Product features
1. Automatic shutdown of machine when oil is full
2. Multiple layers of various precision filters can be optionally selected
3. Equipped with liquid level display
4. Equipped with standard oil discharge gun
5. Equipped with pressure reducing reflux device
6. Overload, overcurrent, phase loss, and leakage protection
