Product intrduction
KALESON QF-100L series uses a three-phase 380V power supply as the power source and is a heavy industry vacuum cleaner that can work for a long time. The dust collection bucket adopts a quick detachable upper and lower bucket structure for more convenient use, with a power range of 2.2KW to 7.5KW to choose from. It is mainly used in places with a lot of dust such as factory workshops, assembly lines, warehouses, etc. It can be used to absorb a large amount of dust and is not easy to block. At the same time, it can clean heavy objects such as iron filings, stones, steel sand, glass fragments, etc.

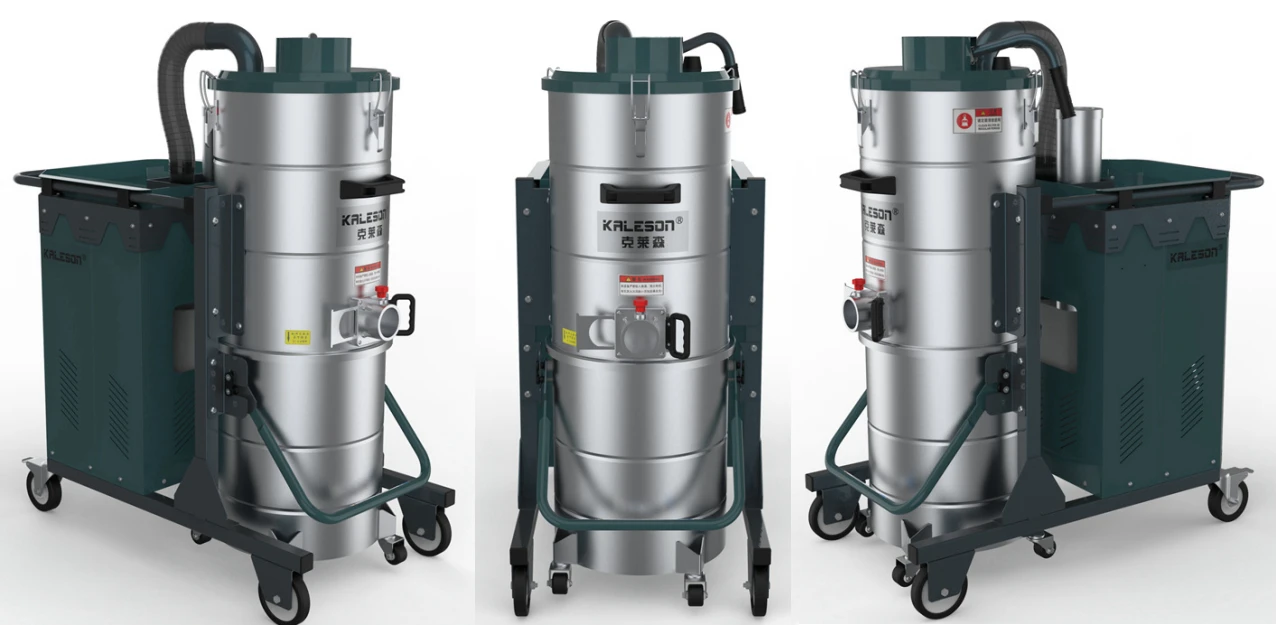

Product image
Product parameter
Model | QF2-100L | QF3-100L | QF4-100L | QF5-100L | QF7-100L |
Volts | 380/50V/Hz | ||||
Power | 2.2 Kw | 3.0 Kw | 4.0 Kw | 5.5Kw | 7.5Kw |
Vacuum | 22Kpa | 26Kpa | 28Kpa | 32Kpa | 34Kpa |
Airflow | 320M³/h | 380M³/h | 410M³/h | 530M³/h | 540M³/h |
Cleaning method | Manual blowback | ||||
Filter area | 35000C㎡ | 35000C㎡ | 35000C㎡ | 35000C㎡ | 35000C㎡ |
Noise | 64Db(a) | 69Db(a) | 69Db(a) | 72Db(a) | 72Db(a) |
Caliber | 50mm | 50mm | 50mm | 50mm | 50mm |
Hose length | 5M | 5M | 5M | 5M | 5M |
Dustbin | 100L | 100L | 100L | 100L | 100L |
Weight | 105kg | 110kg | 112kg | 130kg | 135kg |
Dimensions | 1100X600X1250MM | ||||
product accessories
Product features
1. Using a three-phase motor can operate for a long time
2. The dust cleaning method is designed based on the principle of instantaneous expansion of air pressure
Manual reverse blowing for dust removal is simple, easy to understand, convenient, and fast.
3. Adopting high-efficiency filter cartridge filter cartridge
4. Equipped with a pressure relief device, it can automatically release pressure in high negative pressure situations
5. Adopting a top and bottom separated bucket design, easy to load and unload
6. Accessories D50 caliber complete set of accessories
7. Equipped with vacuum pressure gauge and silencing device
