Product intrduction
KALESON QF-150Lis a large industrial vacuum cleaner that uses 380V three-phase electricity. It has three power options: 7.5KW, 9KW, and 11KW. The dust bucket adopts an upper and lower separation bucket structure for easy disassembly and garbage cleaning. The 150L large capacity makes the cleaning frequency lower. It has high power, large filtration area, and good effect, and can work for a long time without stopping. It is suitable for a large amount of dust working conditions, mainly adsorbing materials such as steel sand, steel shot, iron cutting, copper cutting, cast iron powder, iron ore powder, etc. It is mainly suitable for working environments such as steel mills, iron plants, coking, casting, smelting, pouring, factory workshops, etc.

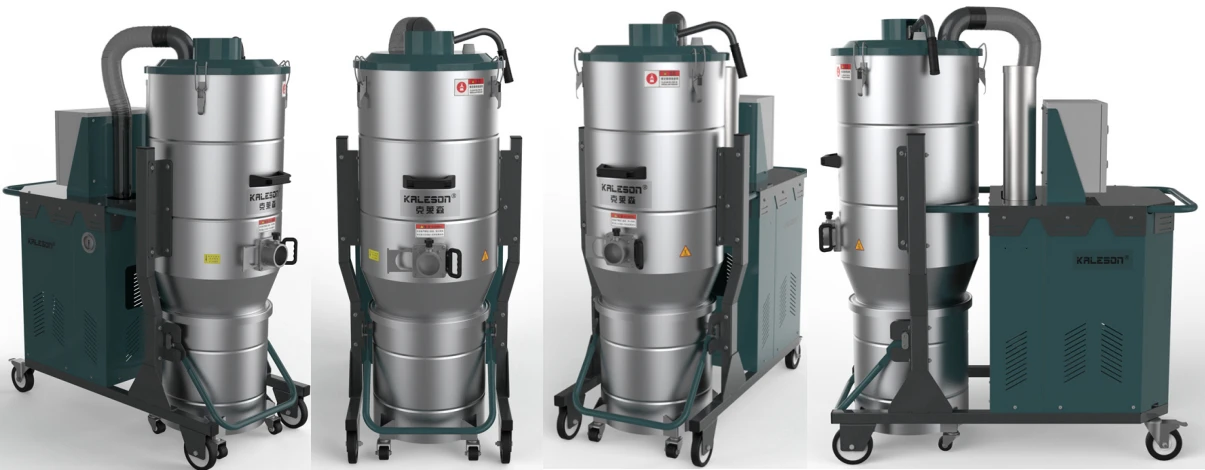

Product image
Product parameter
Model | QF7-150L | QF9-150L | QF11-150L |
Volts | 380/50V/Hz | 380/50V/Hz | 380/50V/Hz |
Power | 7.5Kw | 9.0Kw | 11Kw |
Vacuum | 34Kpa | 29Kpa | 32Kpa |
Airflow | 540M³/h | 850M³/h | 1050M³/h |
Cleaning method | Manual blowback | Manual blowback | Manual blowback |
Filter area | 85800C㎡ | 85800C㎡ | 85800C㎡ |
Noise | 74Db(a) | 76Db(a) | 77Db(a) |
Caliber | 50-76mm | 50-76mm | 50-76mm |
Dustbin | 150L | 150L | 150L |
Weight | 165kg | 185kg | 200kg |
Dimensions | 1260*780*1650MM | 1260*780*1650MM | 1260*780*1650MM |
product accessories
Product features
1. The product dust collection bucket is made of stainless steel material, and the frame is made of carbon steel with spray coating and thickened material processing.
2. The power source adopts high-quality domestic air ring high-pressure fans with strong suction power.
3. The electrical control section and electrical components use branded electrical components.
4. The filtering device is made of non-woven film substrate processed into HEPA high-efficiency filter.
5. The vacuum cleaner is processed using aluminum casting technology, which is fast and easy to install.
6. The vacuum cleaner adopts a separate collection bucket design with upper and lower buckets, which is flexible and convenient for dumping dust.
7. The dust cleaning method is designed based on the principle of instantaneous expansion of air pressure, with manual back blowing for dust cleaning, which is simple, easy to understand, convenient and fast.
8. Mobile casters, using high-quality polyurethane load-bearing casters for comfortable walking and long service life.
