Product intrduction
QJT3-75L is a three wheeled small battery industrial vacuum cleaner, also known as a three wheeled vacuum cleaner. It is compact, flexible, and easy to operate, replacing multiple manual labor to greatly reduce labor costs. It adopts reverse blowing and dust cleaning methods as well as side flipping dust dumping methods, saving time and effort. This industrial vacuum cleaner is mainly designed for cleaning large areas of dust in factory workshops and flat areas within the factory (non road vacuum cleaners). It adopts a battery charging pure suction design to avoid dust generated by sweeping machines and other methods, with no secondary pollution, no noise, and high efficiency and speed. 3000 square meters per hour。

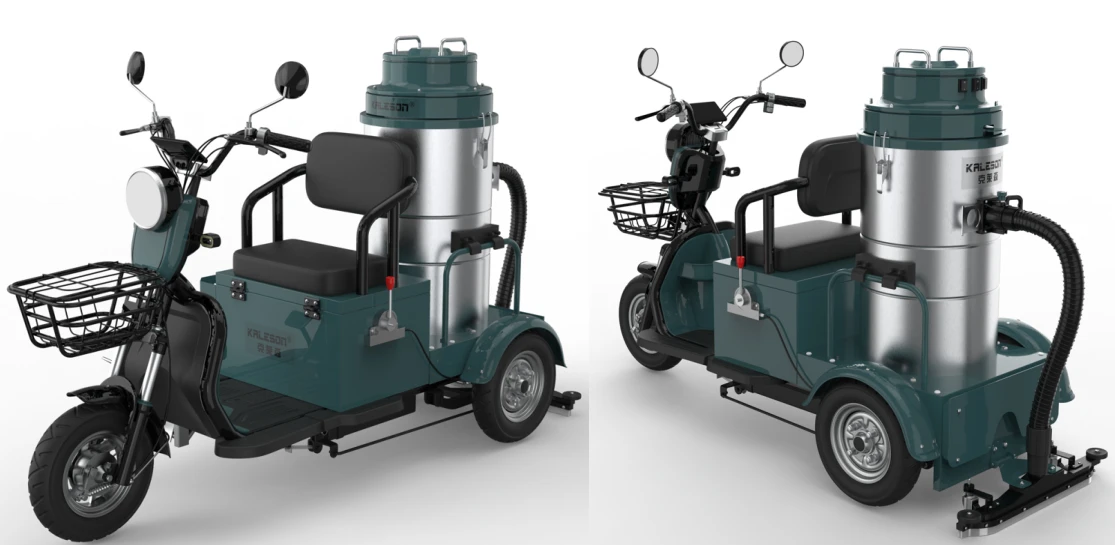

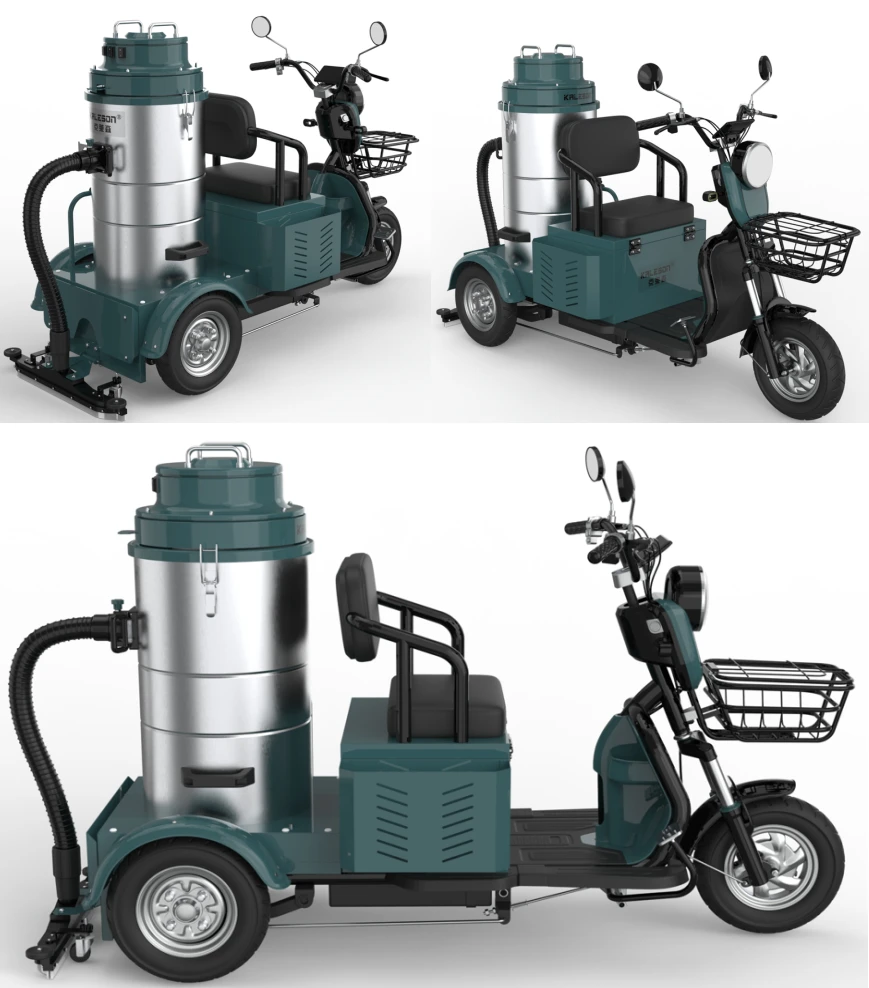

Product image
Product parameter
Model | QJT3-75L |
Effective vacuum width | 700mm |
Special brush width | 450mm |
Effective work efficiency | 3000㎡/h |
Climbing ability | ≤33% |
Wheel | tricycle |
Filtering method | Cartridge filter |
Cleaning method | Manual blowback |
Unloading method | Flip over type |
Vacuum power | 1650W |
Vacuum | 360mbar |
Air flow | 520M³/h |
Voltage | 48V |
Battery volume | 80ahX4 |
Charger | 15A |
Charging time | 8h |
Continuously time | 4～5h |
Drive power | 800w |
Turning radius | 1500mm |
Working speed | 3～7km∕h |
Driving speed | 13km∕h |
Filter area | 6㎡ |
Driving room | open |
Dimension | 1900*800*1300mm |
Weight | 370kg |
product accessories
 |  |
|---|
Product features
High suction fan, dual filtration system, super strong negative pressure suction.
Driving style vacuum cleaner, walking vacuum cleaner, handheld vacuum cleaner integrated.
The body adopts branded components, providing a good foundation for the stability performance of the product.
Ultra negative pressure vacuum technology, with a theoretical utilization rate of up to 100% for dust bins.
High performance maintenance free battery, no leakage, no harmful gas production, no need for post maintenance, low-carbon and environmentally friendly.
Without a driver's cab, the driving field of view is wider.
Inflated and enlarged tires, sturdy and durable, high chassis, no need to slow down when passing speed bumps.
Display total mileage and real-time speed with an error of less than 2%;
High end LED headlights, working in the morning and at night, reliable and reassuring.
Display graphics or files such as left turn, right turn, braking, lights, etc.
Voice prompts for reversing function, improving complete reversing.
Real time display of the working voltage of the battery, if it is too low, prompt you to charge it quickly.
