Product intrduction
KALESON QY-F series is a large cabinet type three-phase industrial vacuum cleaner suitable for dust collection and recovery in ceramics, cement building materials, chemical products, mechanical processing, lathes, grinders, laser cutting machines, engraving machines, polishing and grinding machines, etc. It has been widely used.

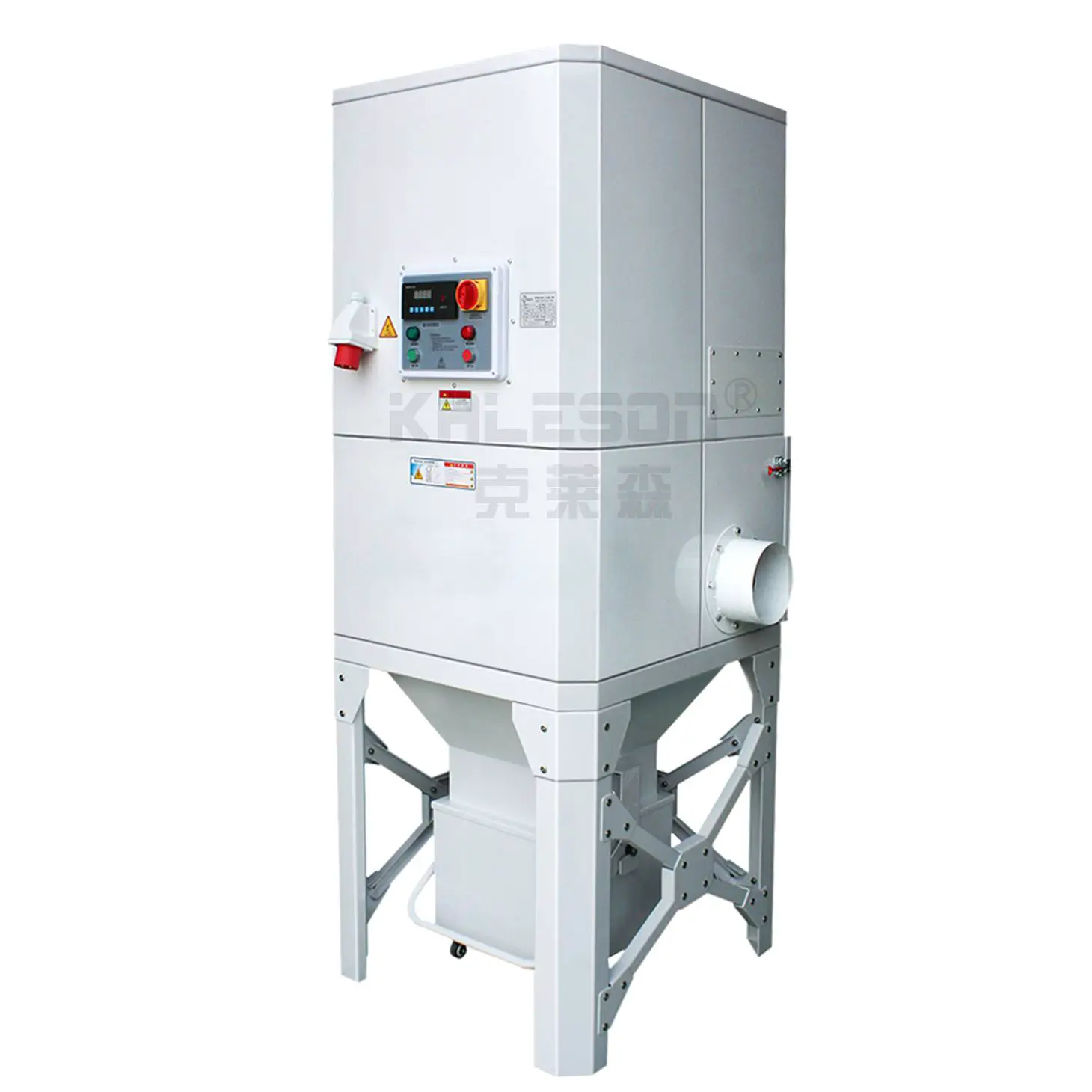

Product image
Product parameter
Model | QY-3000F | QY-4000F | QY-5500F | QY-7500F |
Volts | 380/50V/Hz | 380/50V/Hz | 380/50V/Hz | 380/50V/Hz |
Power | 3.0 Kw | 4.0 Kw | 5.5Kw | 7.5Kw |
Vacuum | 1.7 KPa | 1.8KPa | 2.2 KPa | 2.6KPa |
Airflow | 5200M³/h | 6800M³/h | 7400M³/h | 10000M³/h |
Filter area | 11㎡ | 11㎡ | 18㎡ | 18㎡ |
Noise | 79Db(a) | 82Db(a) | 82Db(a) | 82Db(a) |
Caliber | 100-200mm | 100-200mm | 100-200mm | 200-300mm |
Dustbin | 100L | 100L | 100L | 100L |
Weight | 280kg | 310kg | 380kg | 400kg |
Dimensions | 950×950×2200mm | |||
Product features
1. The fan adopts a centrifugal ventilation structure, with high air volume and suction power
2. Three phase motors can work continuously
3. External gas source timed pulse blowback automatic dust cleaning
4. The use of a filter cartridge has good filtration effect, does not stick to dust, and has a long service life
5. Equipped with a wide and sealed access door for easy replacement and maintenance of filter bags
6. The dust collection bucket adopts a suction bucket structure, which is convenient and fast for ash dumping
