Product intrduction
KALESON QY-H series is a low negative pressure, high air volume, and large caliber industrial vacuum cleaner specially designed for the dust grinding industry. It has three power options: 2.2KW, 3KW, and 4KW. It mainly targets the dust generated during the grinding process and has a particularly good dust collection effect, suitable for industries such as ceramics, cement building materials, chemical products, and mechanical processing. It has been widely used in systems such as lathes, grinders, laser cutting machines, engraving machines, and polishing machines.

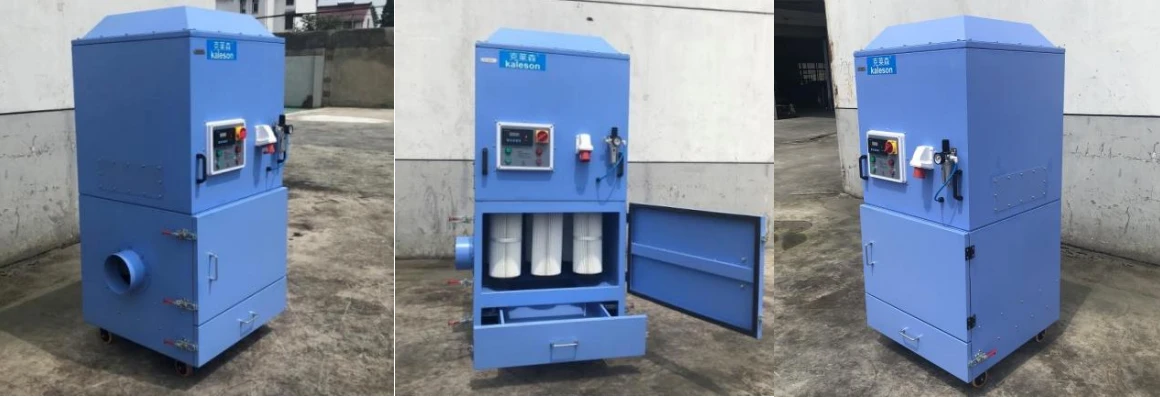

Product image
Product parameter
Model | QY-2200H | QY-3000H | QY-4000H |
Volts | 380V/50HZ | 380V/50HZ | 380V/50HZ |
Power | 2200W | 3000W | 4000W |
Vacuum | 1.3Kpa | 1.7Kpa | 1.8Kpa |
Airflow | 3200M³/H | 4600M³/H | 6800M³/H |
Filter area | 11M² | 11M² | 11M² |
Noise | 82DB | 82DB | 82DB |
Dustbin | 30L | 30L | 30L |
Caliber | 150-200MM | 150-200MM | 150-200MM |
Weight | 185KG | 195KG | 215KG |
Dimensions | 850*800*1850MM | 850*800*1850MM | 850*800*1850MM |
Product features
1. External gas source self-control timed blowback, no manual operation required
2. Can work continuously, automatic timed dust cleaning
3. The dust collection bucket adopts a suction bucket structure, which is convenient and fast for ash dumping
4. Equipped with leakage, phase loss, and overload protection devices
5. Good filtering effect, no dust sticking, long service life
6. Equipped with a wide and sealed access door for easy replacement and maintenance of filter bags
7. Beautiful appearance, reasonable structure, sturdy and durable
8. The fan adopts a centrifugal ventilation structure, with high air volume and low noise
