KALESON QY-N series dust collector

KALESON QY-N series dust collector

KALESON QY-N series is a small large-diameter cabinet vacuum cleaner with three power options: 1.5KW, 2.2KW, and 3KW. It is suitable for small polishing stations with low dust generation and has been widely used in systems such as lathes, grinders, laser cutting machines, engraving machines, and polishing machines. It is mostly suitable for industries such as ceramics, cement building materials, chemical products, and mechanical processing.

free quote

Product intrduction

KALESON QY-N series is a small large-diameter cabinet vacuum cleaner with three power options: 1.5KW, 2.2KW, and 3KW. It is suitable for small polishing stations with low dust generation and has been widely used in systems such as lathes, grinders, laser cutting machines, engraving machines, and polishing machines. It is mostly suitable for industries such as ceramics, cement building materials, chemical products, and mechanical processing.

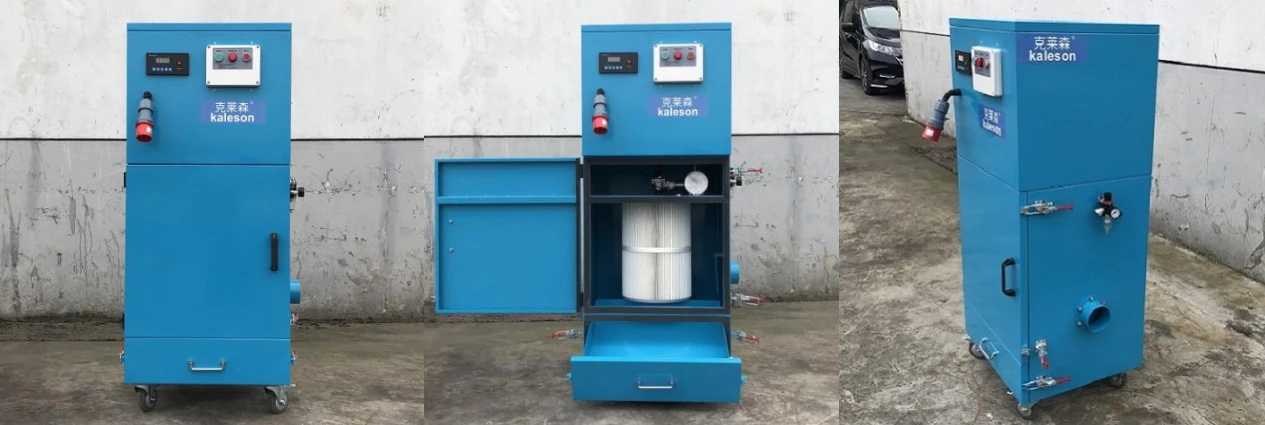

Product image

Product parameter

Model

QY-1500N

QY-2200N

QY-3000N

Voltage

380/50 V/Hz

380/50 V/Hz

380/50 V/Hz

Power

1.5 Kw

2.2 Kw

3.0 Kw

Vacuum

1750 pa

1950 pa

2350 pa

Airflow

2950 M3/h

3300 M3/h

3850 M3/h

Filter area

3800 C㎡

3800 C㎡

3800 C㎡

Noise

79 Db

82 Db

82 Db

Caliber

50-150mm

50-150mm

50-150mm

Dustbin

20L

20L

20L

Dimension

680X570X1360MM

680X570X1360MM

680X570X1360MM

Product features

1. The fan adopts a centrifugal ventilation structure, with high air volume and suction power

2. Good filtering effect, no dust sticking, long service life

3. External gas source, automatic pulse blowback filter element, dust cleaning can work continuously

4. Equipped with a wide and sealed access door for easy replacement and maintenance of filter bags

5. The dust collection bucket adopts a suction bucket structure, which is convenient and fast for ash dumping

6. Beautiful appearance, reasonable structure, sturdy and durable
