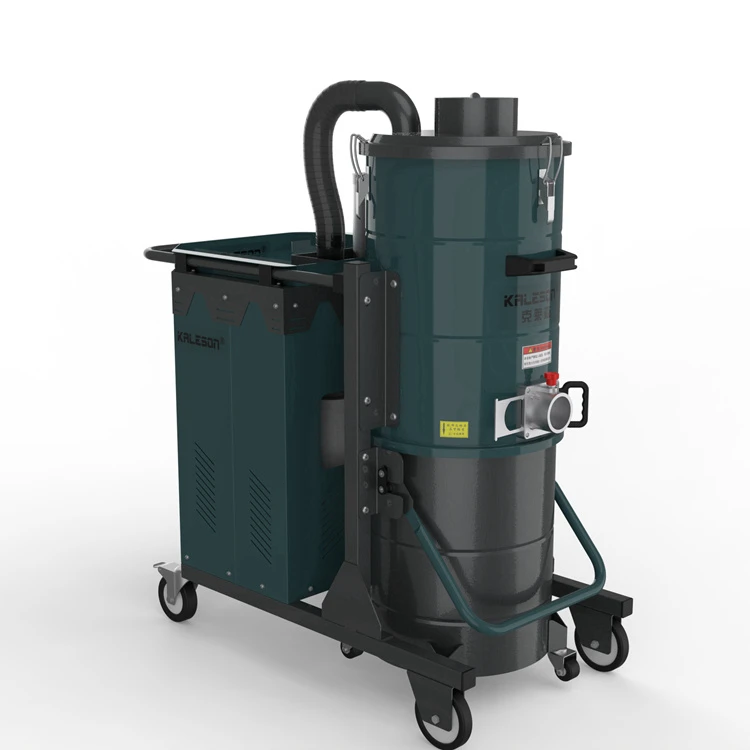

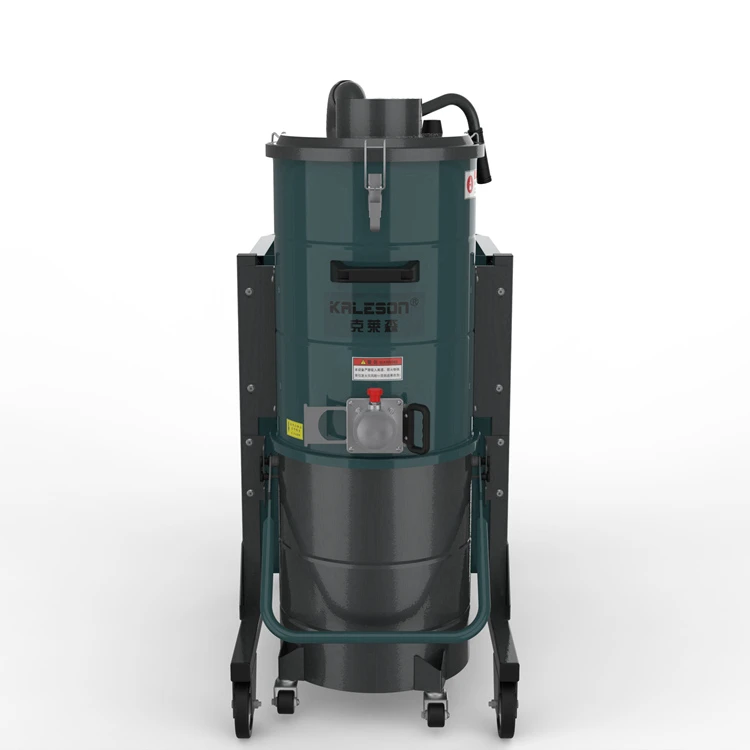

Kaleson QC-75L series is a top and bottom separation barrel can run for a long time 220V industrial vacuum cleaner, in order to suitable for no 380V power supply, but also need to work for a long time in the place to design, the motor is brushless 220V voltage away from the motor, compatible with single-phase electricity at the same time, to meet the user's requirements for long hours of work. It can adsorb dust, powder, glass, iron chips, steel sand and other objects.
 |  |  |
|---|
Product Parameter
Model Type | QC2-75L | QC3-75L |
|---|---|---|
VoltageVolts | 220/50V/Hz | 220/50V/Hz |
Power | 2.2 KW | 3.0 KW |
Vacuum | 22Kpa | 26Kpa |
Airflow | 320M³/H | 360M³/H |
Cleaning method | Manual blowback | Manual blowback |
Filter area | 35000CM² | 35000CM² |
Noise | 69Db(a) | 69Db(a) |
Suctiner | 40 or 50mm | 40 or 50mm |
Vacuum hose | 5M | 5M |
Volume | 75L | 75L |
Weight | 100kg | 105kg |
product accessories
 |  |
|---|
product features
1. Adopt a unique 220V non-carbon brush centrifugal motor that can work continuously for a long time.
2. The dust removal method is designed based on the principle of instantaneous expansion of air pressure. Manual reverse blow dust removal is simple, easy to understand, convenient and fast.
3. Adopt high-efficiency filter cartridge.
4. Equipped with a pressure relief device that can automatically relieve pressure when the negative pressure is high.
5. Adopt an upper and lower separate bucket type for convenient loading and unloading.
6. Complete set of accessories with D40 or D50 caliber.
7. Equipped with a vacuum pressure gauge and a silencing device.
8. Overload, overcurrent, phase loss, and leakage protection. Equipped with a phase change switch for safer and faster power consumption.
